80KB-3 GASONLINE

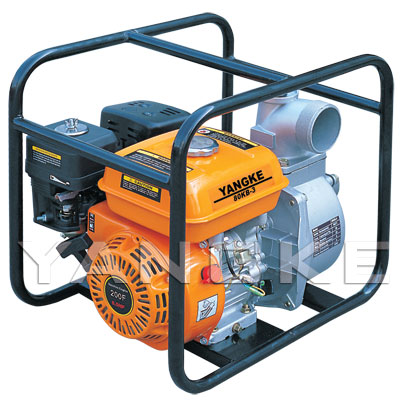

Name: 80KB-3 Gasoline Water Pump
Model: 80KB-3
Technical specifications
Description:
* Powered by YANGKE 4-stroke OHV engine.
* Light type aluminium alloy self-suction pump.
* High quality mechanical seal device.
* Oil alarm system.
* Easy maintenance.
* Meets a wide range of applications.
| Model | 80KB-3 |
|---|---|
| Suction port diameter mm (inch) | 80 (3") |
| Discharge port diameter mm (inch) | 80 (3") |
| Cont. capacity (m3/h) | 30 |
| Cont. head (m) | 13 |
| Self-priming time (s/4m) | 120 |
| Max suction head (m) | 8 |
| Rotation speed (rpm) | 3000 |
| Fuel consumption (g/kW×h) | ≤395 |
| Noise level dB(A)/7m | 74 |
| Dimension (L×W×H) (mm) | 510×380×455 |
| Packing size (L×W×H) (mm) | 525×395×475 |
| Net weight (kg) | 30 |
| Engine model | YK200F |
| Rated output power KW (HP) | 3.6 (4.8) |
| Rated speed (rpm) | 3000 |
| Fuel tank capacity (L) | 3.6 |
| Displacement (cc) | 196 |
| Starting system | Recoil starter |
Please read your Owner's Manual and all labels before operation.
