80KB15-4 DIESEL

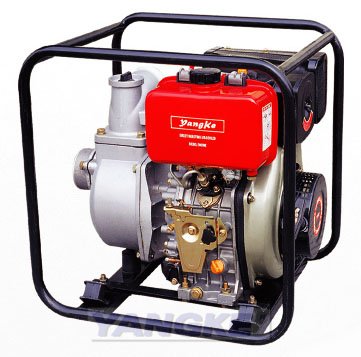

Name: 80KB13-4 Diesel Water Pump
Model: 80KB13-4
Technical specifications
Description:
* Powered by YANGKE super light, air-cooled, direct injection, 4-stroke, diesel engine.
* Light type aluminium alloy self-suction pump.
* High quality mechanical seal device.
* Easy maintenance.
* Meets a wide range of applications.
| Model | 80KB13-4 |
|---|---|
| Suction port diameter mm (inch) | 80 (3") |
| Discharge port diameter mm (inch) | 80 (3") |
| Cont. capacity (m3/h) | 30 |
| Cont. head (m) | 13 |
| Self-priming time (s/4m) | 120 |
| Max suction head (m) | 8 |
| Rotation speed (rpm) | 3000 |
| Fuel consumption (g/kW×h) | ≤280 |
| Noise level dB(A)/7m | 76 |
| Dimension (L×W×H) (mm) | 560×440×550 |
| Packing size (L×W×H) (mm) | 575×455×570 |
| Net weight (kg) | 52 |
| Engine model | YK178F |
| Rated output power KW (HP) | 3.7 (5.0) |
| Rated speed (rpm) | 3000 |
| Fuel tank capacity (L) | 3.5 |
| Displacement (cc) | 296 |
| Starting system | Recoil starter |
Please read your Owner's Manual and all labels before operation.
