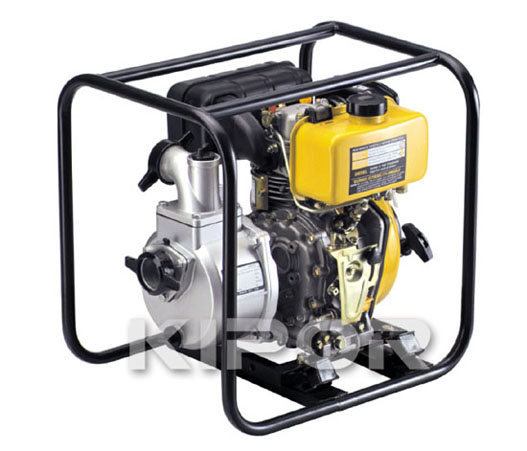

KDP40
Description
*Powered by 4-stroke engine.
*Full frame protection offers exceptional performance even in the toughest conditions.
*Easy maintenance.
*Meets a wide range of applications.
*Recoil starter and electric starter backup.
| Suction & discharge port diameter (mm) (in) | 100(4'') |
| Rated capacity (m3/h) | 40 |
| Max. capacity (m3/h) | 75 |
| Rated total head (m) | 16 |
| Max. total head (m) | 31 |
| Self-priming time (s/4m) | 180 |
| Max. suction head (m) | 8 |
| Rotation speed (r/min ) | 3600 |
| Fuel consumption (g/kWh) | 435 |
| Noise level(dB(A)/7m) | 79 |
| Overall dimension (mm)(L×W×H) | 650×480×600 |
| Net weight (kg) | 69 |
| Engine model | KM186 |
| Rated power (kW) | 6.3 |
| Rated speed (r/min) | 3600 |
| Displacement (cm3) | 406 |
| Starter system | Recoil starter |
