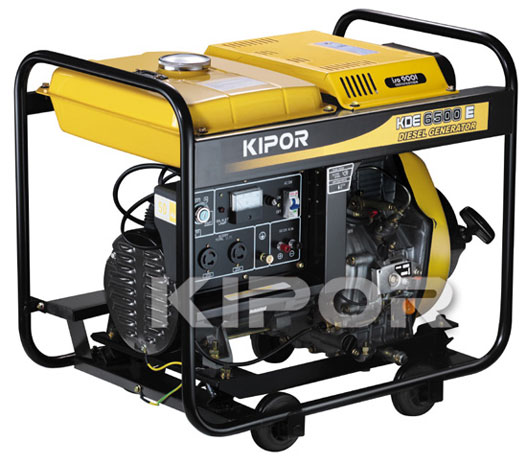

KDE6500E
Description
Features and benefits:
* A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
* Powerful KM186FA diesel engine.
* Optional electric starter.
* Low oil pressure alert system shuts down the engine automatically.
| Rated frequency (Hz) | 50 60 | |
|---|---|---|
| Rated output(kVA) | 4.5 5.0 | |
| Max. ouput (kVA) | 5.0 5.5 | |
| Rated voltage (V) | 115/230 120/240 | |
| Rated current (A) | 39.2/19.6 41.7/20.8 | |
| Rated speed (r/min ) | 3000 3600 | |
| Phase NO. | Single phase | |
| Power factor （cosφ） | 1.0 | |
| Insulation grade | B | |
| Pole number | 2 | |
| Excitation mode | Self-Excitation and constant voltage(AVR) | |
| panel type | General Panel | |
| Output | Volage (V) | 115/230 120/240 |
| Receptacle | Two receptacles | |
| Connection pole | Without | |
| DC12V output | Connection pole output | |
| Overall dimension:L×W×H(mm) | 720×492×655 | |
| Dry weight (Kg) | X:95 E:100 | |
| Working assorting weight(Kg) | X:110 E:115 | |
| Noise Level(7M) db(A) | 77 | |
| Structure type | Silent | |
| Engine Model | KM178FA | |
| Engine type | single-cylinder,Vertical,four-storke,direct injection | |
| Cylinder NO,-bore×stroke(mm) | 1-78×62 | |
| Displacement | 418 | |
| Rated power[kW(Hp)/(r/min)] | 5.7/3000 6.3/3600 | |
| Compression ratio | 19:1 | |
| Rated rotation speed | 3000 3600 | |
| lgnition system | - | |
| Cooling system | Air cooled | |
| Lubrication system | pressure splashed | |
| Starting system | X:Recoil starter E:Electric Starter | |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel | |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 | |
| Capacity of cooling Water(L) | Without | |
| Lube capacity (L) | 1.65 | |
| Starting motor capacity (V-kW) | 12V 0.8kW | |
| Charging generator capacity (V-A) | 12V 3A | |
| Battery capacity(V-Ah) | 12V 36Ah | |
| Fuel consumption (g/kW·h) | 275.1 281.5 | |
| Fuel tank capacity (L) | 13.5 | |
| Continuous running time (hr) | 6 | |
